No More Manhole Missions! How Deneng Instruments’ Bluetooth NB Water Meter Achieves 100% Data Return Rate

In the smart water sector, one of the most persistent headaches for engineers and utilities is collecting data from underground pipeline networks where signals fail.

Traditional solutions force a choice between manual, hazardous meter reading (costly and risky) or simply accepting data gaps. Deneng Instruments’ Dual-Mode Bluetooth NB-IoT Smart Water Meter is engineered to solve this exact industry pain point.

1. The Old Problem: Manual Reading in Signal Blind Spots

• Safety Risks:Technicians entering confined spaces face hazards like oxygen deficiency and toxic gases.
• High Operational Cost:A single manual reading can cost 10%-20% of the device price.
• Data Delays:Monthly or quarterly readings prevent real-time monitoring and leak detection.
• Management Challenges:Prone to errors with paper records and low digitalization.

2. The Deneng Solution: How Dual-Mode Communication Works

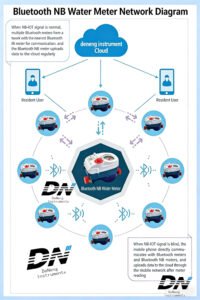

[Bluetooth NB Water Meter Network Diagram](Image URL or Attachment)
Figure 1: Deneng Instruments Bluetooth NB Water Meter Network Architecture

Mode 1: When NB-IoT Signal is Strong (Automatic Network Mode)

When meters are installed in areas with stable NB-IoT coverage:

1. Self-Forming Network:Multiple Bluetooth meters automatically connect to the nearest Bluetooth NB meter.
2. Gateway Upload:The Bluetooth NB meter acts as a gateway, periodically uploading data to the Deneng Cloud platform.
3. Fully Automated:Operates autonomously with zero manual intervention.

Technical Advantages:

• Ultra-low power design with a battery life of 6-8 years.
• Supports massive connections; a single base station can handle tens of thousands of meters.
• Encrypted data transmission compliant with international standards like GDPR.


  Mode 2: In NB-IoT Signal Blind Spots (Mobile Recovery Mode)

  When meters are located in basements, deep wells, underground garages, or other low-signal areas:

  1. Bluetooth Direct Connection:Field staff use a mobile app to connect to the meter within a 10-meter range.
  2. One-Touch Reading:Data is read directly via Bluetooth.
  3. Cloud Sync:The phone relays the data to the cloud via 4G/5G networks.

  Operation Flow:

  Open Deneng Field App → Scan for nearby Bluetooth meters → Select target device → Read data → Auto-sync to cloud

  The entire process takes 10-15 seconds, with data immediately available in the management system.

  3. Core Value of the Deneng Solution

  1. 100% Data Integrity Guaranteed

  • Redundant dual-channel design ensures no data loss in any environment.
  • Automatic cloud-side data verification and completion mechanisms.


    2. Significant Operational Cost Reduction

    Item	Traditional Solution	Deneng Dual-Mode Solution	Savings
    Manual Reading Cost	$2-3 USD per meter per reading	$0 (in automatic mode)	100%
    Data Loss Rate	5%-15%	0%	100%
    Maintenance Frequency	Every 1-2 years	Every 6-8 years	75%

    3. Flexible Deployment for Any Scenario

    • New Projects:Primarily use NB-IoT mode.
    • Retrofit Projects:No need to modify network infrastructure; use Bluetooth mode as a bridge.
    • Hybrid Scenarios:Both types of meters can coexist in the same system.

    4. Why Choose Deneng Instruments?

    1. A Decade of Focus:Specializing in smart metering R&D since 2014.
    2. Full Certification Suite:CE, RoHS, ISO9001, and other international certifications.
    3. Customization Service:OEM/ODM support tailored to project requirements.


       5. Key Technical Specifications

       Parameter	Specification
       Communication	NB-IoT + Bluetooth
       Transmission Range	NB-IoT: Dependent on base station coverage Bluetooth: 10 meters (line-of-sight)
       Battery Life	6-8 years (with daily data transmission)
       Protection Rating	IP68 (submersible up to 2 meters)
       Operating Temperature	-40℃ ~ +90℃
       Accuracy Class	Class 2 (compliant with ISO4064)

       6. Recommended Next Steps

       If you are facing:

       • Underground meter reading challenges
       • Old district water meter renovation projects
       • Smart water platform construction needs

       Take Action Now:

       1. Request a Sample:Contact us for a free test unit.
       2. Technical Consultation:Schedule a 30-minute online technical briefing.
       3. Customized Solution:Share your project details for a tailored proposal.About Deneng Instruments
          Deneng Instruments is a National High-Tech Enterprise specializing in the R&D and manufacturing of smart metering products.

          This article is part of the Deneng Instruments Technical Series. Please cite the source when sharing.
          Last Updated: February 2026
